Contact Seller
Features
| Title | HAFCO METALMASTER GHD-55G |
| Type | Engineering - Fabrication |
| Sub Type | Geared Head Pedestal Drill |
| Make | HAFCO METALMASTER |
| Model | GHD-55G |
| Sale Price | $9,080 GST Exclusive |
| Listing Type | New |
| Stock Number | 615262 |
| RefCode | TA1266493 |
Description

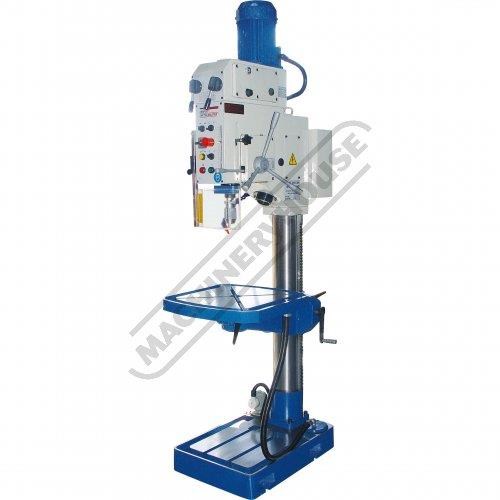

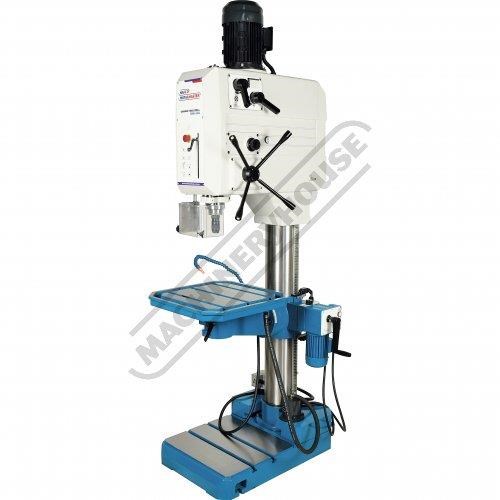

GHD-55G Industrial 4MT Geared Head Drilling Machine ??50mm Drilling Capacity Includes Automatic Feed
HAFCO-METALMASTER GHD-55G Industrial 4MT Geared Head Drilling Machine ??50mm Drilling Capacity Includes Automatic Feed & Tapping
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: D175
The GHD-55G is our big boy Industrial Geared Head Drilling Machine that has it all, and if you are wanting the best of the best to drill small holes up to large holes, then look no further as this will be what you will need in your engineering workshop. With a hefty 4 morse taper spindle that can travel a huge 180mm in depth, and the extra-large head to house in those big drive gears with 16 speeds to drill through the toughest steels with ease. This machine also features an automatic drilling feed system, so you do not need to use human force at all to drill any holes.

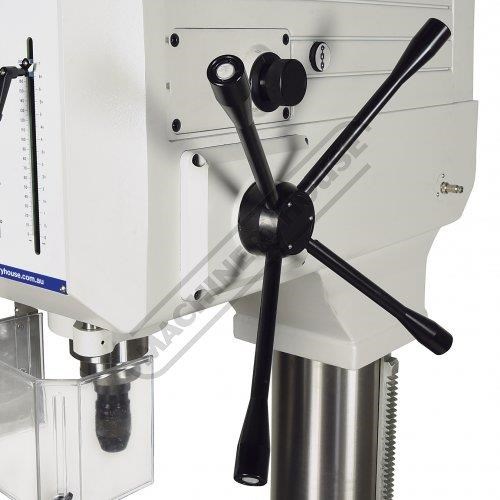

More features are added into this all-rounder drilling machine to help save the operator from using human power, by simply engaging the gear drive from hand mode then using the push buttons for the motorised work table to raise or lower to optimum height required. The work table also can rotate 360??, and tilts 90?? left & 90?? right to accommodate multitudes of endless drilling possibilities. Another notable and very useful feature to mention is that tapping holes can be achieved easily by selecting this function on the control panel, setting the depth stop and appropriate spindle speed, and once the tapping depth is reached the spindle will automatically revere and your tap will retract out of the hole.
Features:
Ideal for industrial workshop use
Geared head drilling machine with 4 morse taper spindle
Thread tapping with auto reverse

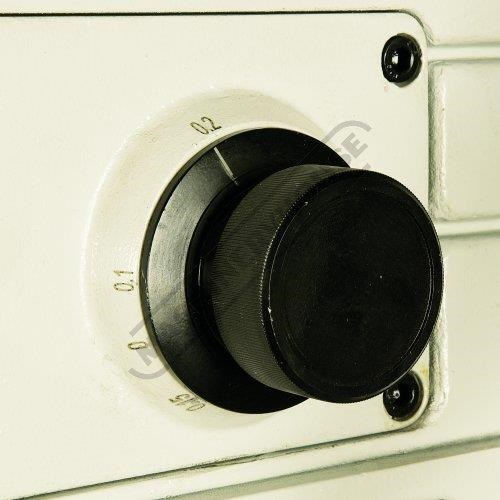

Automatic feed range (0.1 0.15 0.2mm/rev)

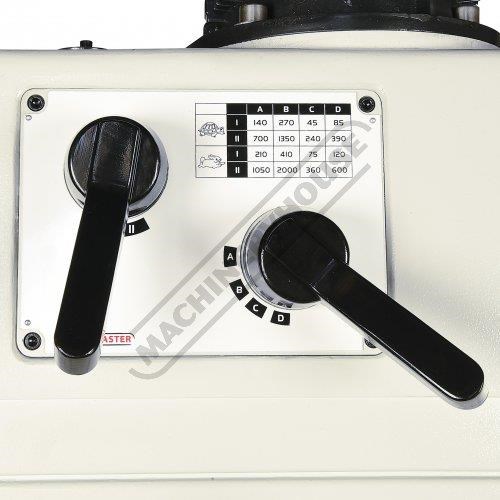

16 drilling speeds from 45-2000rpm
50mm drill capacity with 180mm spindle travel

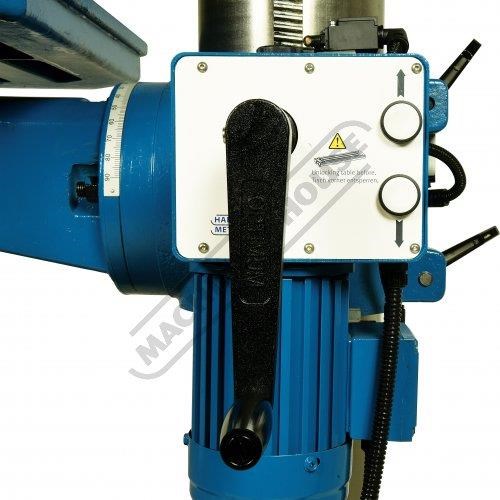

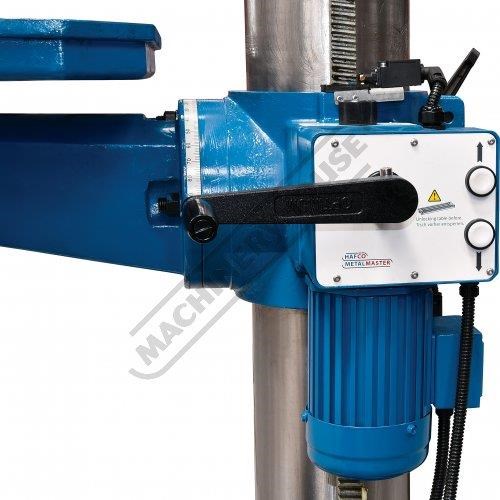

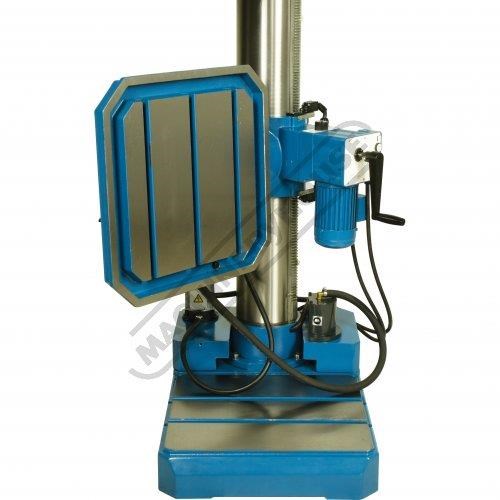

Motorised rise & fall work table

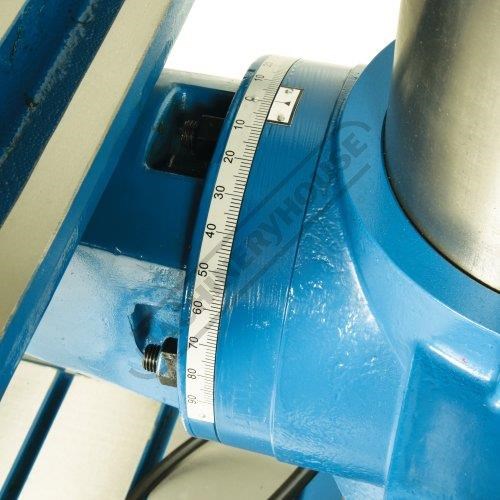

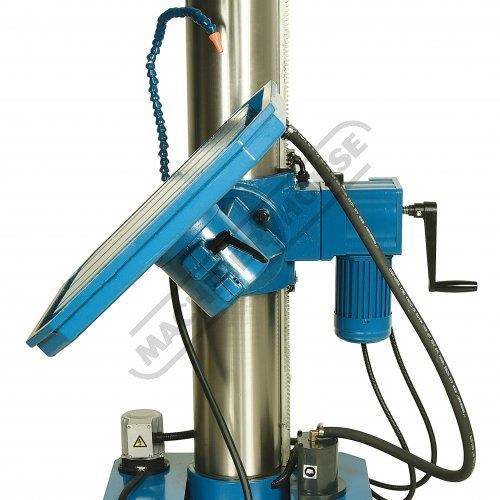

Table rotates 360?? and tilts 90?? left & 90?? right

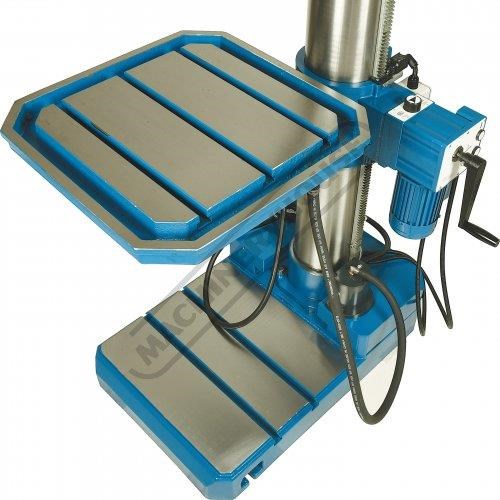

T slotted work table and base

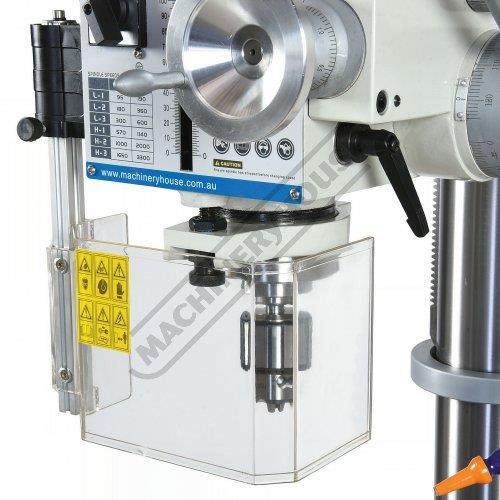

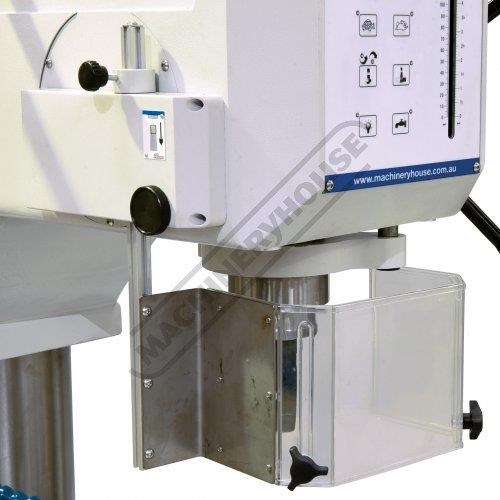

Interlocked spindle safety guard
Drill ejector incorporated in machine

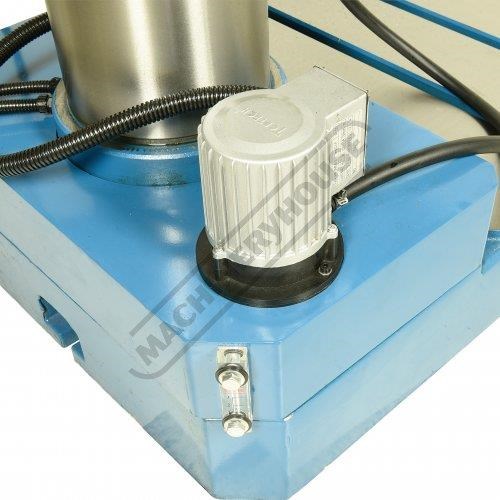

Coolant pump system with flexible hose
2 x LED work lights mounted in convenient location
Oil sight glass for geared head and feed gearbox

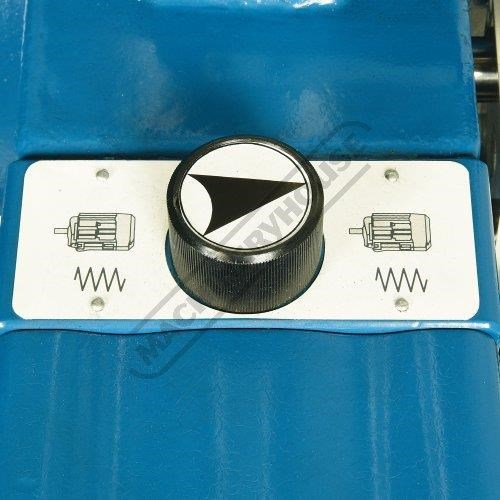

Forward and reverse spindle speed switch

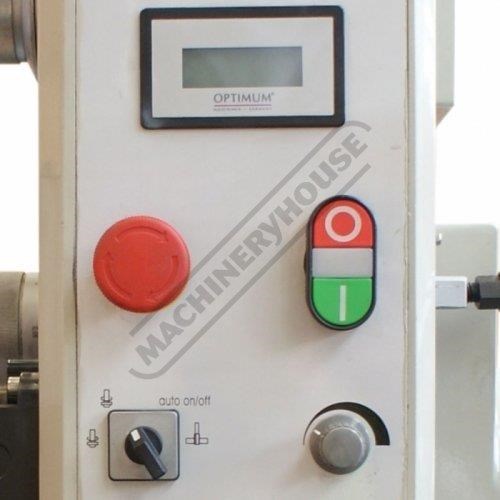

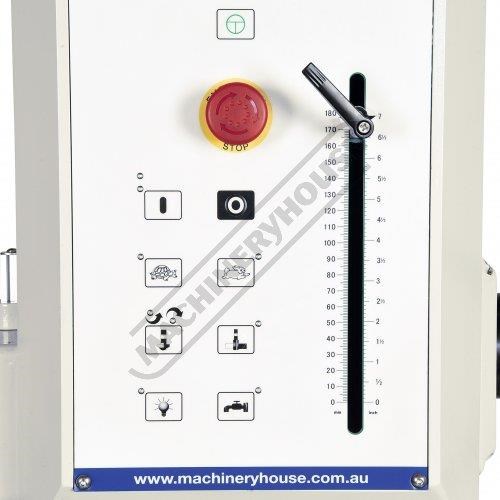

Emergency stop switch and overload protection
Substantial heavy walled column ensuring greater rigidity

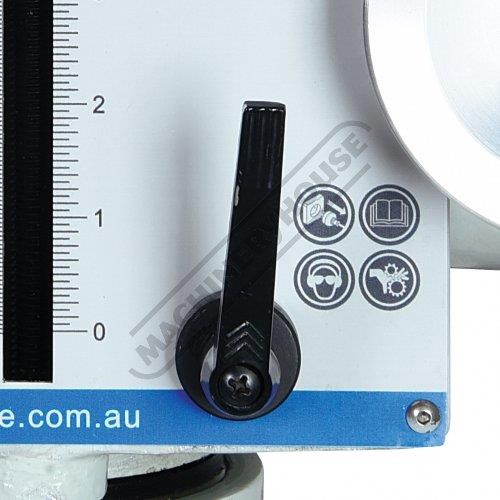

Adjustable accurate depth stop setting with auto feed cut out
Modern 24V DC electrics to European CE standards
Includes:

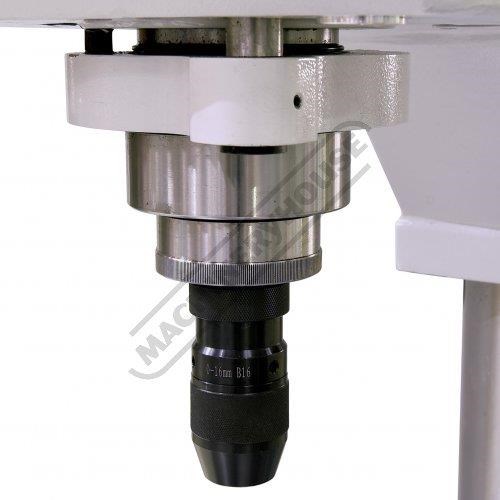

- 16mm keyless drill chuck and arbor
- Coolant pump system
- Auto drilling feed
- Tapping function
- Interlocked spindle safety guard
- LED work lights

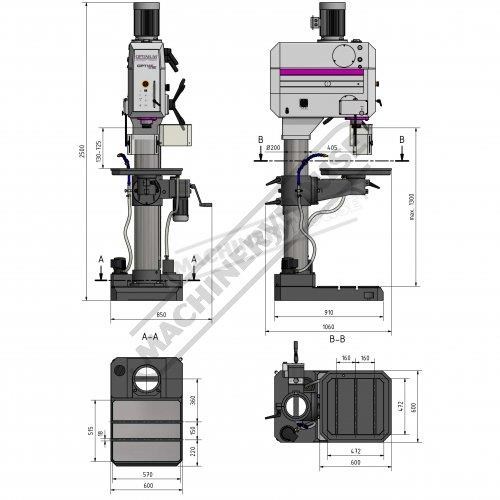

Specifications:
ORDER CODE: D175
MODEL: GHD-55G
Drilling Capacity (mm): ??50
Thread Tapping Capacity (Metric): M42
Spindle Taper (MT): 4
Spindle Travel (mm): 180
Throat Depth (mm): 405
Quill Diameter (mm): 88
Column Diameter (mm): 200
Spindle To Table (mm): 130 ~ 750
Spindle To Base (mm): 1300
Table (Type): Square
Table Size (mm): 600 x 600
T-Slot Size (mm): 18
Automatic Quill Feed (mm/rev): 0.1, 0.15, 0.2
Work Light (Includes): Yes
Coolant System (Includes): Yes
Spindle Speed Steps (No.): 16
Spindle Speed Range (rpm): 45 ~ 2000
Motor Power (kW / hp): 2.8 / 3.7
Voltage / Amperage (V / amp): 415
Full Height (mm): 2500
Nett Weight (kg): 930
To Purchase Online Please Visit The Machineryhouse Website & Search For 'D175'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
HAFCO-METALMASTER GHD-55G Industrial 4MT Geared Head Drilling Machine ??50mm Drilling Capacity Includes Automatic Feed & Tapping
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: D175
The GHD-55G is our big boy Industrial Geared Head Drilling Machine that has it all, and if you are wanting the best of the best to drill small holes up to large holes, then look no further as this will be what you will need in your engineering workshop. With a hefty 4 morse taper spindle that can travel a huge 180mm in depth, and the extra-large head to house in those big drive gears with 16 speeds to drill through the toughest steels with ease. This machine also features an automatic drilling feed system, so you do not need to use human force at all to drill any holes.
More features are added into this all-rounder drilling machine to help save the operator from using human power, by simply engaging the gear drive from hand mode then using the push buttons for the motorised work table to raise or lower to optimum height required. The work table also can rotate 360??, and tilts 90?? left & 90?? right to accommodate multitudes of endless drilling possibilities. Another notable and very useful feature to mention is that tapping holes can be achieved easily by selecting this function on the control panel, setting the depth stop and appropriate spindle speed, and once the tapping depth is reached the spindle will automatically revere and your tap will retract out of the hole.
Features:
Ideal for industrial workshop use
Geared head drilling machine with 4 morse taper spindle
Thread tapping with auto reverse
Automatic feed range (0.1 0.15 0.2mm/rev)
16 drilling speeds from 45-2000rpm
50mm drill capacity with 180mm spindle travel
Motorised rise & fall work table
Table rotates 360?? and tilts 90?? left & 90?? right
T slotted work table and base
Interlocked spindle safety guard
Drill ejector incorporated in machine
Coolant pump system with flexible hose
2 x LED work lights mounted in convenient location
Oil sight glass for geared head and feed gearbox
Forward and reverse spindle speed switch
Emergency stop switch and overload protection
Substantial heavy walled column ensuring greater rigidity
Adjustable accurate depth stop setting with auto feed cut out
Modern 24V DC electrics to European CE standards
Includes:
- 16mm keyless drill chuck and arbor
- Coolant pump system
- Auto drilling feed
- Tapping function
- Interlocked spindle safety guard
- LED work lights
Specifications:
ORDER CODE: D175
MODEL: GHD-55G
Drilling Capacity (mm): ??50
Thread Tapping Capacity (Metric): M42
Spindle Taper (MT): 4
Spindle Travel (mm): 180
Throat Depth (mm): 405
Quill Diameter (mm): 88
Column Diameter (mm): 200
Spindle To Table (mm): 130 ~ 750
Spindle To Base (mm): 1300
Table (Type): Square
Table Size (mm): 600 x 600
T-Slot Size (mm): 18
Automatic Quill Feed (mm/rev): 0.1, 0.15, 0.2
Work Light (Includes): Yes
Coolant System (Includes): Yes
Spindle Speed Steps (No.): 16
Spindle Speed Range (rpm): 45 ~ 2000
Motor Power (kW / hp): 2.8 / 3.7
Voltage / Amperage (V / amp): 415
Full Height (mm): 2500
Nett Weight (kg): 930
To Purchase Online Please Visit The Machineryhouse Website & Search For 'D175'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
