Features
| Title | OPTIMUM BF-16V |
| Type | Engineering - Fabrication |
| Sub Type | Mill Drill |
| Make | OPTIMUM |
| Model | BF-16V |
| Sale Price | $1,200 GST Exclusive |
| Listing Type | New |
| Stock Number | 205885 |
| RefCode | TA1268045 |
Description

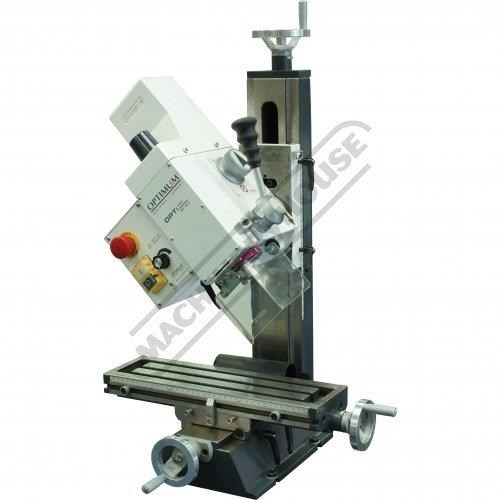

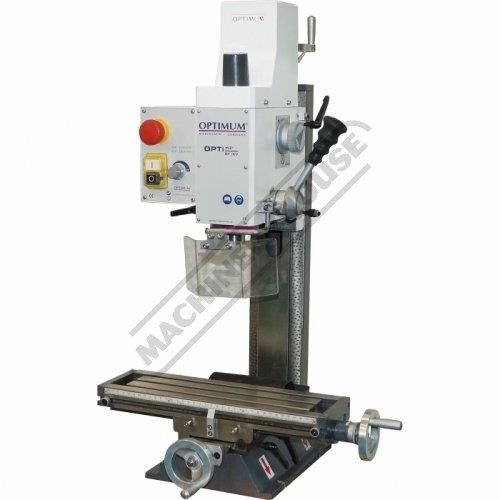

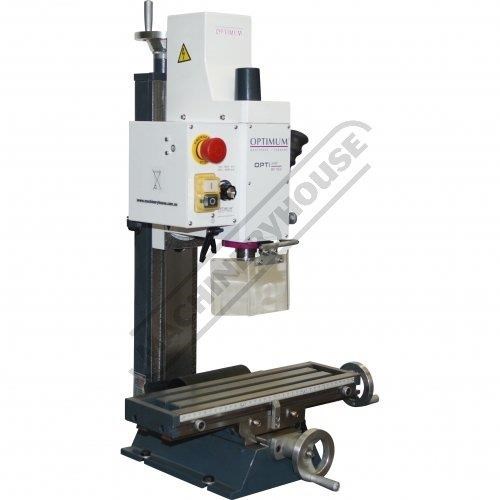

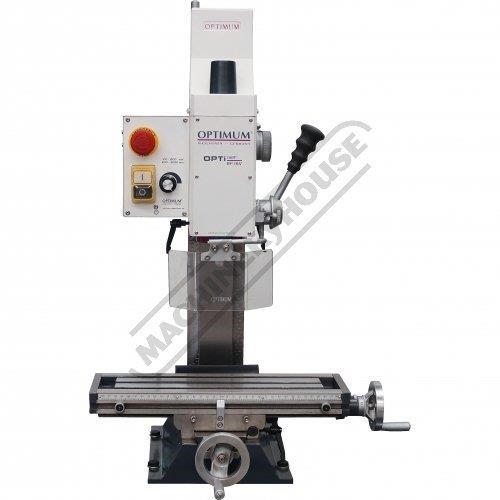

BF-16V Mini Opti-Mill Drill - Geared & Tilting Head Table Travel: (X) - 220mm (Y) - 160mm (Z) - 210m
OPTIMUM BF-16V Mini Opti-Mill Drill - Geared & Tilting Head Table Travel: (X) - 220mm (Y) - 160mm (Z) - 210mm Electronic Variable Speeds & Dovetail Column
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M649

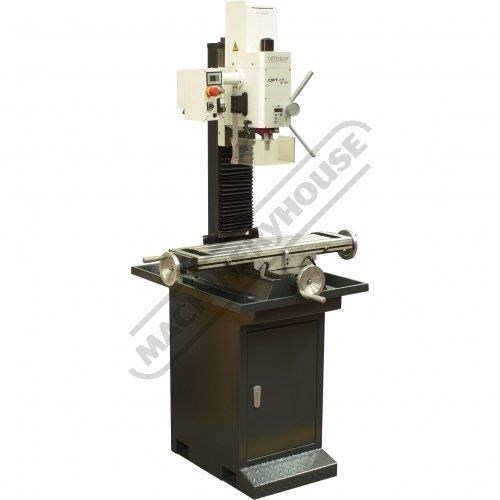

Excellent quality mini mill drill machine designed for the model engineer
Features:
Electronic infinitely variable speed (100-3000rpm)

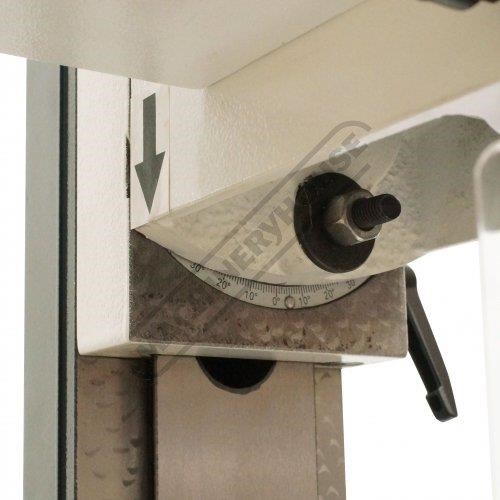

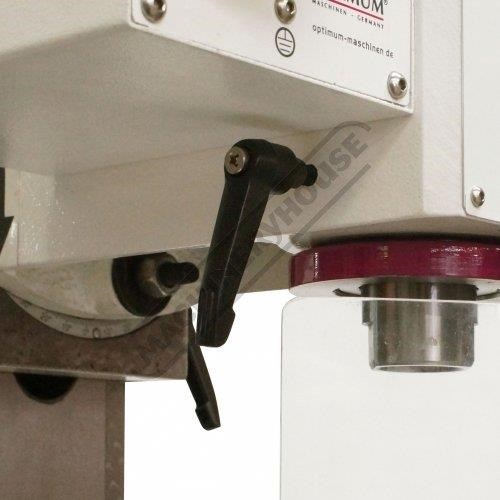

Tilting head to ??90?? from vertical
3MT spindle taper
Adjustable dovetail slideways on all 3 axis
Heavy duty cast iron body and base for better stability

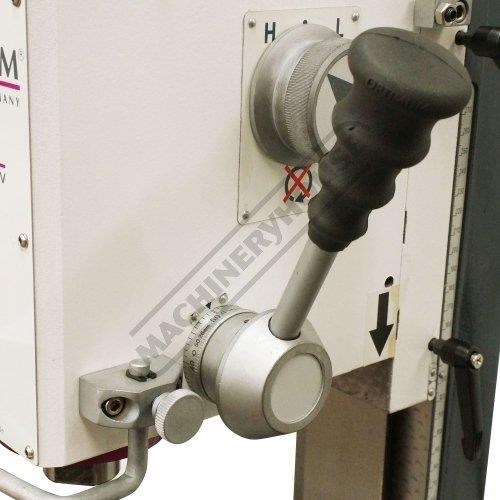

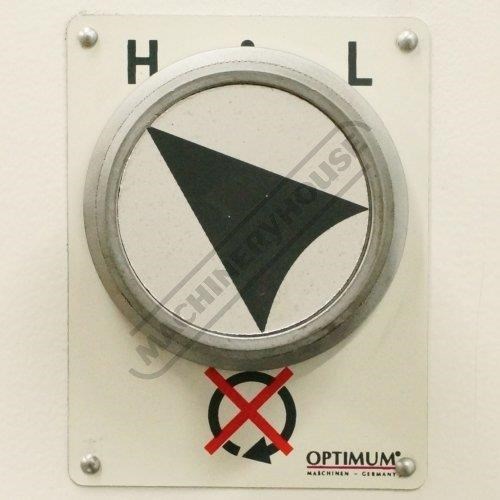

2-speed gearbox (high/low) drive system to maximise torque

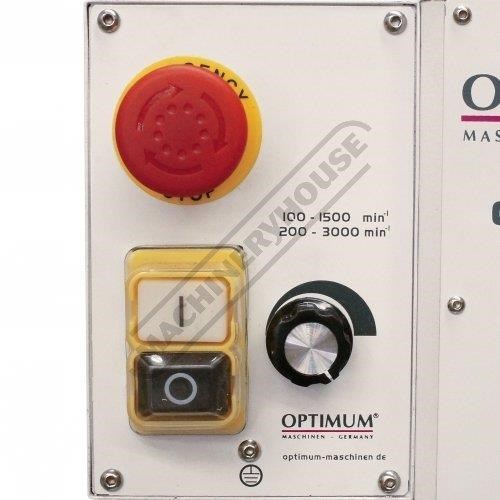

IP54 with low-voltage release switch

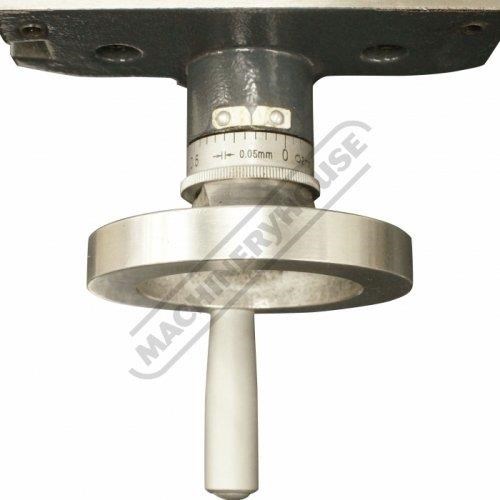

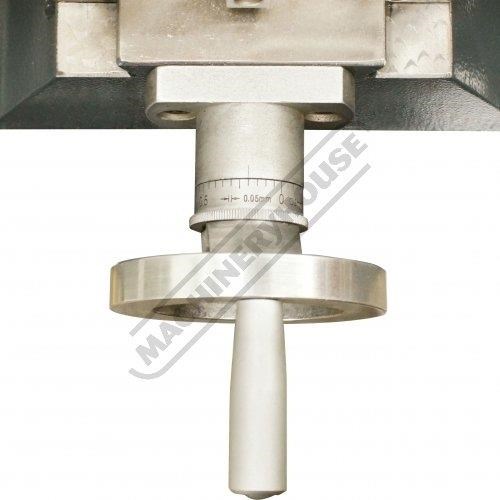

Scale collars for all axis are adjustable

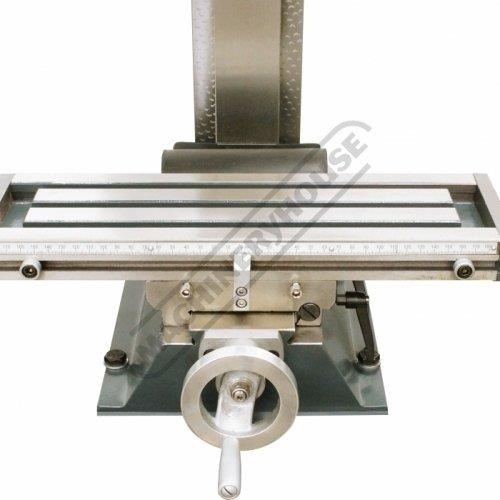

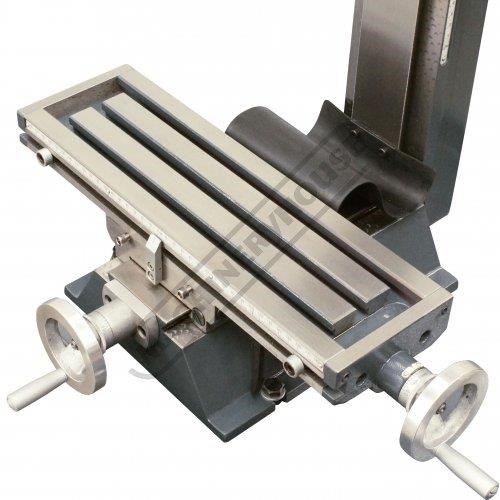

400 x 120mm cast iron work table with T-slots
Adjustable table and drill length stops
Metric dial graduations on X & Y Axis

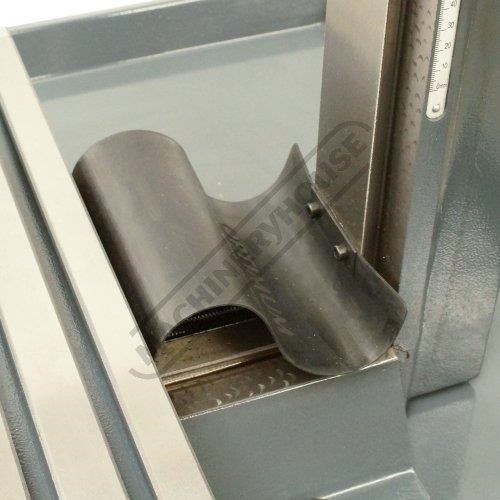

Rear slideway cover and slide clamps on all axis

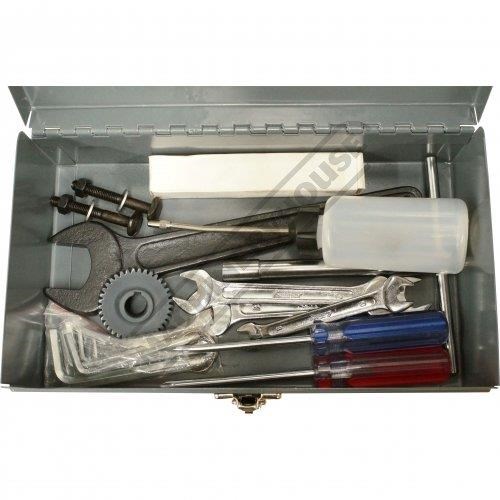

Includes:
- 3MT x JT6 drill chuck arbor

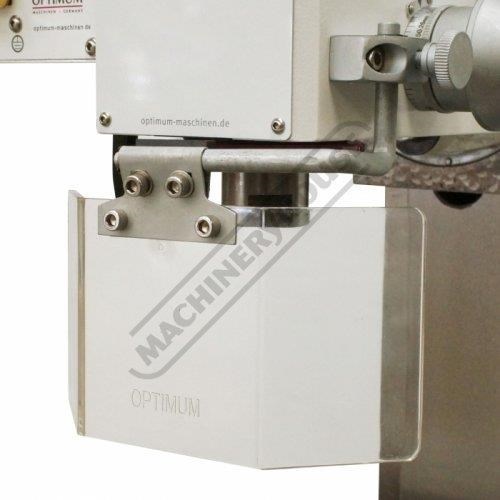

- Safety cutter guard

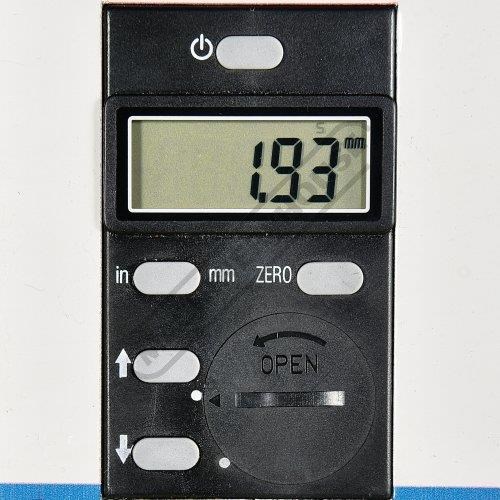

- Bracket kit for optional digital readout

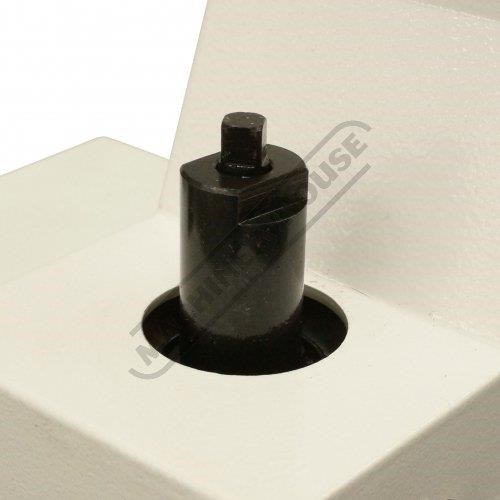

- 1/2`` x 12tpi whitworth drawbar
Specifications:
ORDER CODE: M649
MODEL: BF-16V
Digital Readout: Optional
Type: Vertical
Table Size (mm): 400 x 120

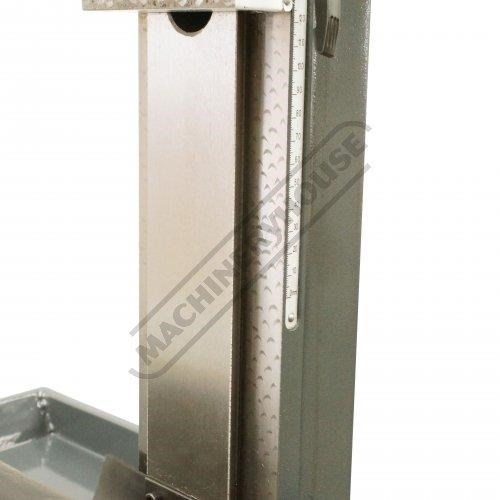

Column Type: Dovetail
Spindle Taper - Vertical: 3MT
Spindle Taper - Horizontal: ~
Longitudinal Travel (X-Axis) (mm): 220
Cross Travel (Y-Axis) (mm): 160
Vertical Travel (Z-Axis) (mm): 210
Type of Slides: Dovetail
Ram Travel (mm): ~
Spindle to Table (mm): 270
Spindle to Base: ~
Spindle Travel / Diameter (mm): 50 / 60
Throat Depth (max.) (mm): 170
Tilting Head (Left ~ Right): ??90??
Tilting Head (Forward ~ Back): Fixed
Drilling Capacity (mm): 16
End Milling Capacity (mm): 20
Face Milling Capacity (mm): 63
Power Feed - Quill (mm/rev): ~
Power Feed - Longitudinal (X-Axis) (mm/min): ~
Power Feed - Cross (Y-Axis) (mm/min): ~
Power Feed - Vertical (Z-Axis) (mm/min): ~
Table T-Slot Size (inch / mm): 10
Work Table Load Capacity (kg): 25
Spindle Speeds Vertical (No./ rpm): Variable (100 - 3000)
Spindle Speeds Horizontal (No./ rpm): ~
Spindle Speeds - Universal Head: ~
Motor Power - Vertical Spindle (kW / hp): 0.5 / 0.66
Motor Power - Horizontal Spindle (kW / hp): ~
Motor Power - Universal Head: ~
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 78
To Purchase Online Please Visit The Machineryhouse Website & Search For 'M649'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
